• The relay module is based on the Micom P122 industrial relay.
• They can also use the relay support software and a suitable computer to program the relay module.
• The relay module is then connected to the fault circuits so tests can be performed.
• The lecturer or student sets up different fault circuits on the Protection and Relay Test Set.
• They then use the keypad and display on the relay module to program it to the settings needed for the tests.
• Most tests are performed using single relays.

The main functions of the Overcurrent and Earth Fault Relay include:

• Three-phase earth and overcurrent: three independent stages.
• The first stage selectable from any of 12 IDMT curves.
• The remaining stages having a direct time characteristic.
• High impedance restricted earth fault.
• Thermal overload protection.
• Negative-phase sequence overcurrent: two independent stages.
• Broken conductor detection.
• Selectable blocking, Undercurrent.
• Trend, fault and disturbance records.
• Circuit monitoring.

Contact Science Lab for your Educational School Science Lab Equipments. We are best scientific educational lab equipments, scientific equipments manufacturers, scientific lab equipment manufacturers, scientific lab plasticware, scientific laboratory equipment manufacturer, scientific laboratory equipment supplier.

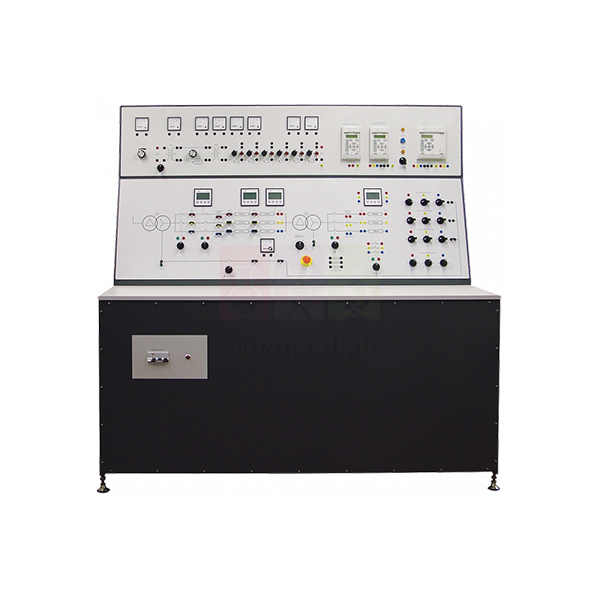

• An upper panel that shows the basics of distribution.
• A lower panel that shows more advanced three-phase power distribution.
• The upper panel includes low-voltage a.c and d.c supplies, a set of lamps and variable resistances.
• The resistances simulate a feeder cable and the lamps simulate loads.
• Its primary tappings are adjustable and its secondary winding star point can be connected to earth.
• The panels include all current, voltage and power meters needed for the experiments.
• The lower panel includes connections to two three-phase transformers, lines and loads to simulate industrial power distribution.
• One transformer reduces the voltage from the incoming supply to the correct value for the experiments.
• The other transformer reduces the line voltage down to 110 V and acts as the ‘line receive’ transformer.
  Students may connect the feeder circuit to learn the principles of ring main and radial circuits.
• The low-voltage a.c supplies may be connected to show the principles of regulation.

Contact Science Lab for your Educational School Science Lab Equipments. We are best scientific laboratory equipments manufacturer, scientific laboratory equipments supplier, technical educational equipment exporter, technical educational equipment manufacturer, technical educational equipment supplier, technical educational equipments exporter

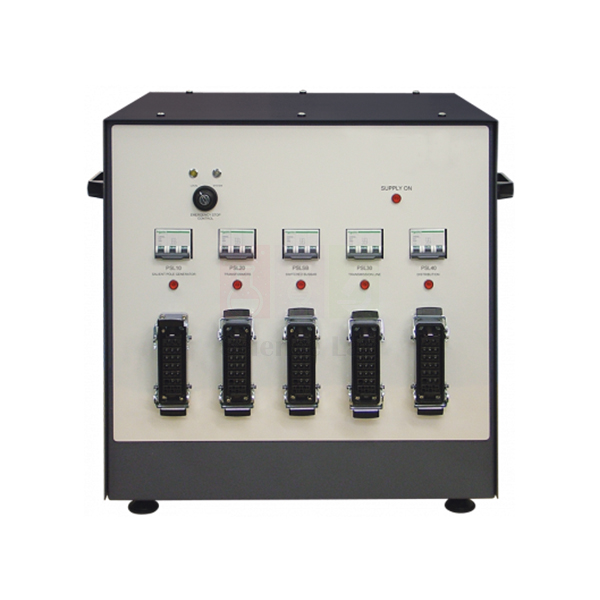

• It is needed to connect two or more of the modules together.
• When connected to a suitable mains supply, the hub provides power for each part of the Modular Power System.
• It also links the electrical test circuits so students do not need to use long test leads between modules.
• The hub links the emergency stop buttons of each connected module to give better safety in the laboratory.

The user can select from a choice of two emergency stop settings:

• One setting stops the power to only the affected module of the Modular Power System, leaving the others still powered.
• The emergency stop setting switch is a keyswitch to prevent unauthorised use.
• The other setting stops the power to all modules of the Modular Power System.

Contact Science Lab for your Educational School Science Lab Equipments. We are best technical educational equipments manufacturers, technical educational equipments manufacturer, technical educational equipments supplier, technical educational instruments, technical educational instruments exporter, technical educational instruments manufacturer, vocational training lab instruments exporter.

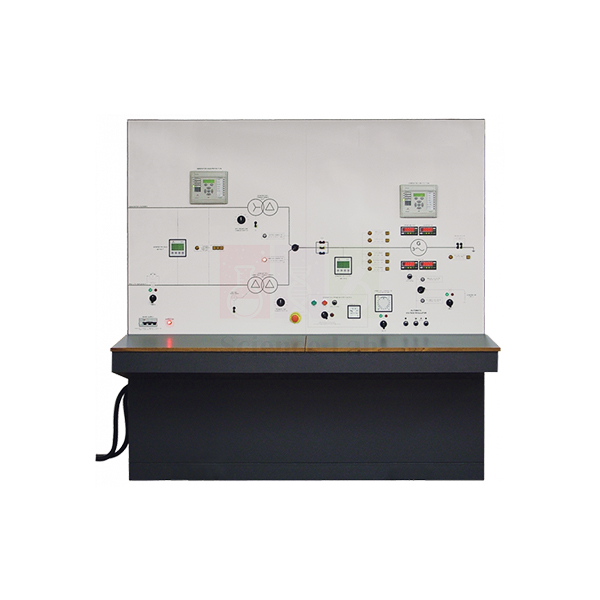

• The motor and generator set consists of two coupled machines mounted in the base of the control console.
• Manual or different types of automatic excitation control the output of the generator.
• A vector drive controls the speed of the motor.
• Students can set the relays from their control panels.
• The circuit-breakers also include hand-operated switches, and lamps.
• The lamps show whether the circuit-breaker is open or closed.
• Digital meters show the conditions of the prime mover and generator.
• The relays operate the circuit-breakers around the second generator.
• The relays show students how actual generators are protected and the different ways that they are protected.
• The relays also include sockets to link them to a suitable computer for more detailed programming, if needed.
• The Second Generator links to the Power System Trainer at the higher voltage (transmission) level to simulate central generation, for example main power stations.

Contact Science Lab for your Educational School Science Lab Equipments. We are best technical educational instruments supplier, technical institute lab equipments, technical lab equipments manufacturers, top lab equipments manufacturers, tvet lab equipment manufactruers, vocational training lab equipments exporter, vocational training lab equipments manufacturers.

• The Three-phase Mobile Transformer is an essential tool for experiments and demonstrations of transformer theory.
• It consists of three identical transformers on a common core to create a three-limb, three-phase transformer.
• All tappings connect to coloured, shrouded sockets for safety.
• To show transformer principles clearly, the transformers operate as one volt each turn.
• The transformer is inside a steel enclosure, which has small wheels for ease of mobility.
• This means that the no-load output voltage is the same as the number of turns on the secondary.
• For a typical test, students connect the primary and secondary winding to suit their experiments.
• All tappings are accessible, so students may link the windings to suit any of the common three-phase connections.
• The transformer has a selection of high-voltage (primary) and low-voltage (secondary) tappings to select a range of input and output voltages.

Contact Science Lab for your Educational School Science Lab Equipments. We are best technical educational equipments manufacturers, technical educational equipments manufacturer, technical educational equipments supplier, technical educational instruments, technical educational instruments exporter, technical educational instruments manufacturer, vocational training lab instruments exporter.

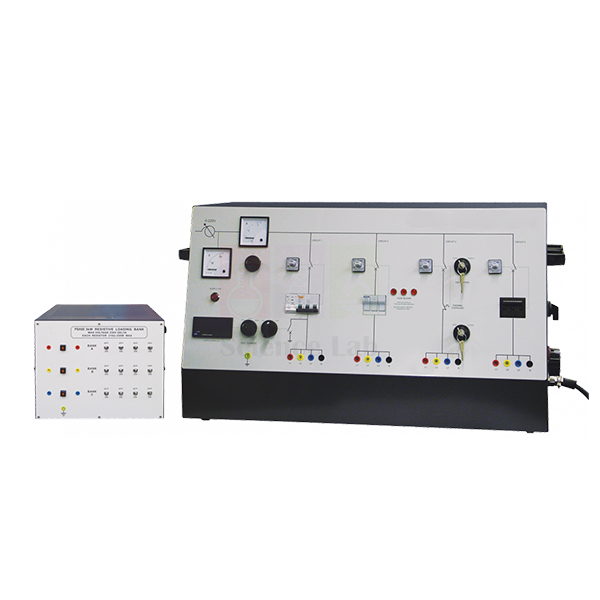

• A variable transformer inside the unit works with the load to set and control the fault current in each of four circuits.
• Circuit two tests fuses and includes a ‘fuse break’ detector circuit.
• This uses lamps to show the students when each of the fuses breaks.
• To show students how industrial switching circuits work, each circuit includes a contact breaker, switched by an industrial standard discrepancy switch.
• Circuit one includes an additional adjustable residual current detector for experiments with different residual current faults.
• Each circuit has a different current protection device, including fuses, a magnetic only circuit-breaker, a thermal only circuit-breaker, and a thermomagnetic circuit-breaker.
• It includes a digital display and switches to help set the earth leakage fault current before the test.
• It shows the fault current and breaking time relationship for different fuse types.
• Circuit three also includes remote and local control keyswitches to switch its contact breaker and break the circuit.
• This helps to show how both a control room operator or a remote operator can switch a circuit on or off in a real installation.

Contact Science Lab for your Educational School Science Lab Equipments. We are best scientific laboratory equipments manufacturer, scientific laboratory equipments supplier, technical educational equipment exporter, technical educational equipment manufacturer, technical educational equipment supplier, technical educational equipments exporter.

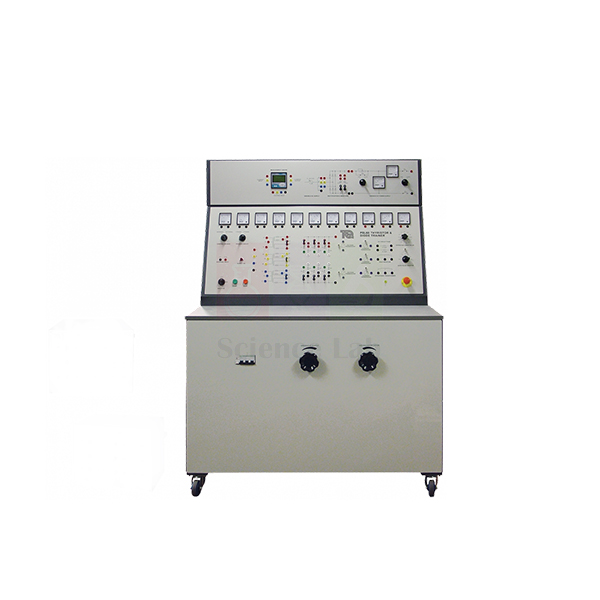

• The control panel has clear mimic diagrams with shrouded sockets.
• Students use shrouded leads to connect the different parts of the circuits.
• The parts include thyristors, diodes, inductors, transformers and smoothing capacitors.
• A load inductor shows the effect of inductance when smoothing the AC ripple in rectifier circuits.
• Fast-blow fuses on the control panel protect the load side of experiment circuits.
• The multi-tapped transformers give a choice of single and three-phase AC voltages for connection to the diodes and thyristors.
• A mix of standard analogue meters and a multi-function digital meter measure the currents and voltages in the circuits.
• A centre-tapped interphase transformer shows the effect of reducing circulating currents in rectifier circuits.
• Students use controls on the lower panel to adjust AC supply voltage and ballast resistance during experiments.
• For thyristor experiments, students can select an external or internal source to trigger the gates of the thyristors.
• Transducers allow students to connect an oscilloscope (included) to show and compare the gate pulses with the output wave-forms.

Contact Science Lab for your Educational School Science Lab Equipments. We are best scientific educational lab equipments, scientific equipments manufacturers, scientific lab equipment manufacturers, scientific lab plasticware, scientific laboratory equipment manufacturer, scientific laboratory equipment supplier

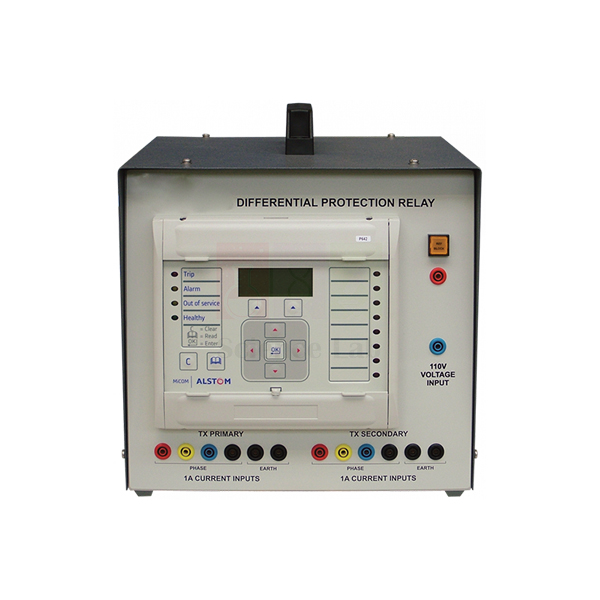

• The relay shows clearly the characteristics of three-phase differential protection.
• The relay is housed in a robust enclosure with carrying handle.
• A Micom industrial relay forms the main part of the unit.
• The lecturer or student sets up different fault circuits on the Protection and Relay Test Set or other Power System product.
• The unit mounts on the desk area of the Protection and Relay Test Set or other Power System product.
• It connects using a multi-core cable from the back of the relay to the Power System products.
• They then use the keypad and display on the relay module to program it to the settings needed for the tests.
• They can also use the Micom S1 software and a suitable computer to program the relay module.
• The user then connects the 4 mm shrouded sockets from the relay to the test circuits on the Power System product.

Contact Science Lab for your Educational School Science Lab Equipments. We are best engineering educational equipments, high school science lab equipment manufacturers, lab equipment exporters, lab equipments manufactruers, lab instruments manufactruers, mathematics lab equipments manufacturers.

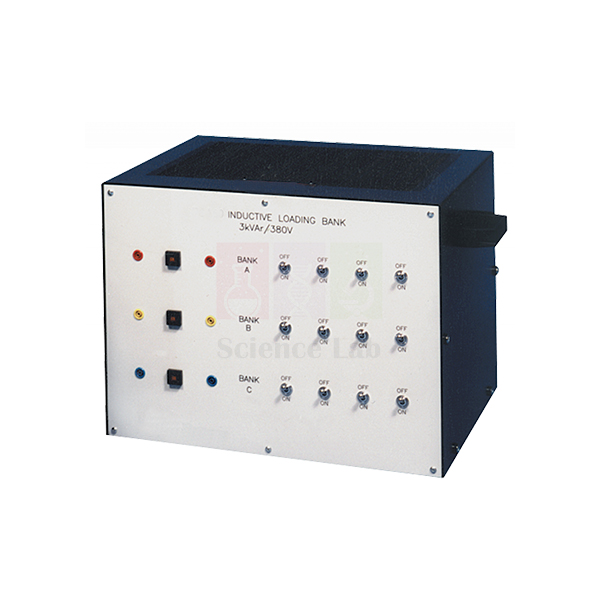

• The Portable Inductive Load Bank is a robust steel enclosure that contains three banks of switchable inductive loads.
• Each bank of inductors is electrically separate, so they can connect as a star or delta load for three-phase circuits.
• Set of switches to bring each inductor into circuit.
• This allows students to create and study the effects of balanced or unbalanced inductive loads.
• Inductors includes a thermally operated circuit-breaker to protect the loads.
• Students connect the loads to experiment circuits using safety sockets on the enclosure front panel.
• Can use this load bank in combination with the other similar load banks to provide variable power and power factor loads.

Contact Science Lab for your Educational School Science Lab Equipments. We are best school science lab equipments suppliers in india, school science lab instruments, school science lab instruments exporter, school science lab instruments manufacturer, school scientific equipments, science educational equipment.

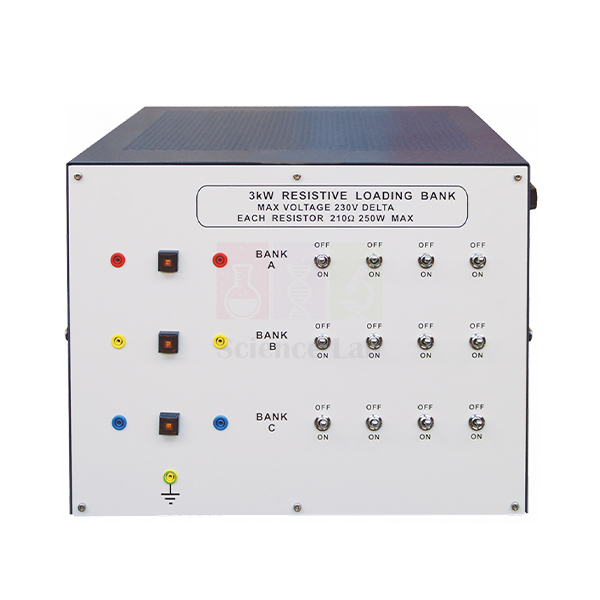

• The Portable Resistive Load Bank is a robust steel enclosure that contains three banks of switchable resistive loads.
• Each bank of resistors is electrically separate, so they can connect as a star or delta load for three-phase circuits.
• Each bank of resistors includes a thermally operated circuit-breaker to protect the loads.
• Students connect the loads to experiment circuits using safety sockets on the enclosure front panel.
• Each bank has a set of switches to bring each resistor into circuit.
• This allows students to create and study the effects of balanced or unbalanced resistive loads.
• Students can use this load bank in combination with the other similar load banks to provide variable power and power factor loads.

Contact Science Lab for your Educational School Science Lab Equipments. We are best maths lab equipment manufacturers in india, physics lab equipments manufacturers, school educational equipments, school lab equipment manufacturer, school lab equipments manufacturers in india, scientific educational lab equipment.

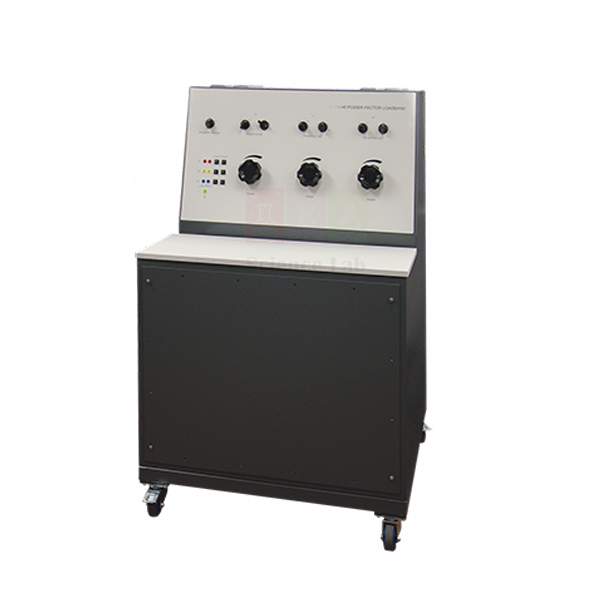

• A voltage-selector switch allows the load bank to work with different line voltages for single and three-phase circuits.
• The Power Factor Load Bank is a free-standing and mobile unit.
• The load bank provides three separate inputs: Lines 1, 2 and 3. This allows it to work with single and three-phase circuits.
• Each line is independent, which allows it to connect with the others as a star or delta load.
• The load bank includes three separate banks of resistive, inductive and capacitive loads.
• They give a choice and combination of types of loads to give unity (resistive only) and leading or lagging power factor.
• It gives predictable load and power factor characteristics, useful for many different power systems experiments.
• It also helps to show the principles of a static VAr compensator used in industrial plants and large factories.
• Each bank (line) may be set to different values, to give an unbalanced load for balanced and unbalanced load tests.
• The top of the load bank includes a useful worktop for any additional instruments or for recording results.

Contact Science Lab for your Educational School Science Lab Equipments. We are best science educational equipments, science educational instruments, science lab equipments manufacturer, science laboratory instruments exporter, scientific educational equipments, scientific educational lab equipment.

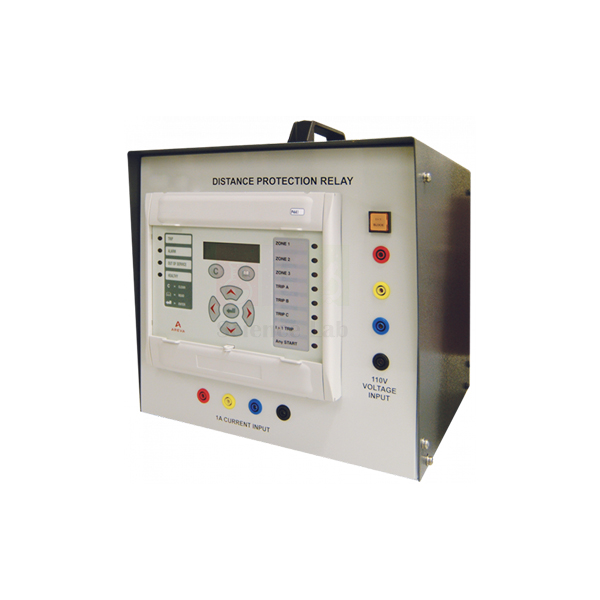

• The relay module is based on the Micom industrial relay.
• The lecturer or student sets up different fault circuits on the Protection and Relay Test Set.
• Use the keypad and display on the relay module to program it to the settings needed for the tests.
• They can also use the Micom S1 software and a suitable computer to program the relay module.
• The relay module is then connected to the fault circuits so tests can be performed.

The main functions of the Distance Protection Relay include:

• Broken conductor.
• Blocking of any one protection element.
• Creating fault and disturbance records.
• Directional/non-directional phase overcurrent.
• Directional/non-directional earth fault.
• Directional/non-directional negative sequence overcurrent .
• Thermal overload protection.
• Full scheme phase and ground distance protection – up to five zones.

Contact Science Lab for your Educational School Science Lab Equipments. We are best scientific educational lab equipments, scientific equipments manufacturers, scientific lab equipment manufacturers, scientific lab plasticware, scientific laboratory equipment manufacturer, scientific laboratory equipment supplier

• The relay is housed in a robust enclosure with carrying handle.
• The module mounts on the desk area of the Protection and Relay Test Set, and connects to it using a multi-core cable and safety leads.
• The lecturer or student sets up different fault circuits on the Protection and Relay Test Set.
• They then use the keypad and display on the relay module to program it to the settings needed for the tests.
• They can also use the Micom S1 software and a suitable computer to program the relay module.
• The relay module is then connected to the fault circuits so tests can be performed.
• Most tests are performed using single relays.

The main functions of the Directional/Non-Directional Overcurrent Relay include:

• Three independent stages of directional/non-directional phase overcurrent.
• The first stage may be set to any of 12 IDMT curves, the remaining two having a direct time characteristic.
• Thermal overload protection.
• Undercurrent.
• Undervoltage.
• Overvoltage.
• Negative phase sequence overcurrent.
• Directional/non-directional earth fault.
• Selectable blocking.
• Creating fault and disturbance records.

Contact Science Lab for your Educational School Science Lab Equipments. We are best school science lab equipments suppliers in india, school science lab instruments, school science lab instruments exporter, school science lab instruments manufacturer, school scientific equipments, science educational equipment

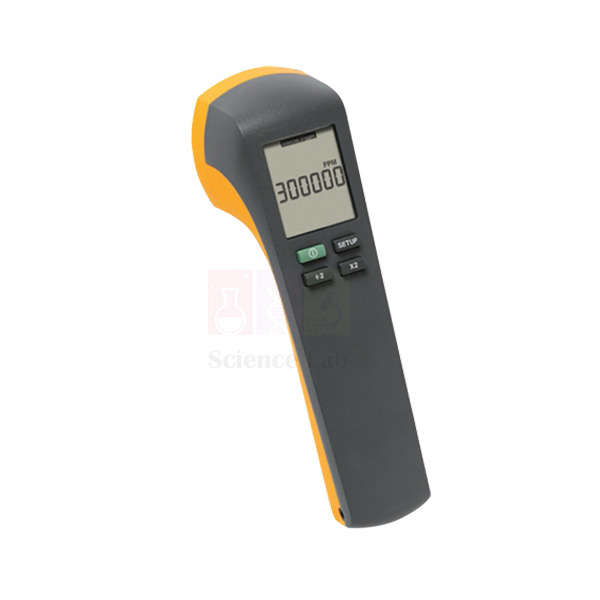

• A portable digital stroboscope for general laboratory use, such as speed measurement and motion studies.
• It emits a white light flash from a high efficiency LED solid-state light source on the front of the unit.
• The rear panel holds the stroboscope controls and a liquid crystal display.
• Stroboscope has two modes of operation: internal oscillator and external trigger.
• Internal oscillator produces a continuous flash over two frequency ranges.
• External trigger allows another frequency generating device to control the flash rate.
• In addition, the stroboscope can be used as a strobe tachometer to measure speed instead of using a laser tachometer. Using a stroboscope you can “stop” the shaft down to 30 RPM (FPM).
